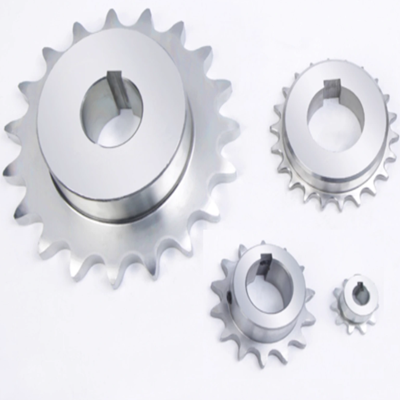

Gear Sprocket
The gear spocket, as a drive or deflection for chains, has pockets to hold the chain links with a D-profile cross section with flat side surfaces parallel to the centre plane of the chain links, and outer surfaces at right angles to the chain link centre plane. The chain links are pressed firmly against the outer surfaces and each of the side surfaces by the angled laying surfaces at the base of the pockets, and also the support surfaces of the wheel body together with the end sides of the webs formed by the leading and trailing walls of the pocket.
Product parameters
Products | Gear sprocket |
Custom | OEM, drawing or sample customization |
Surface treatment | blackening, electroplating, oxidation, electrophoresis, |
Material | 45# steel, aluminum, stainless steel, 42CrMn,20CrMnTi |
Production equipment | high speed sawing machine, wire cutting machine, CNC lathe, CNC hobbing machine, machining center, cylindrical grinding machine, forming gear grinding machine, slotting machine, marking machine. |
Processing technology | gear processing, grinding processing, milling processing, gear processing, slow wire |
Z | de | dp | SIMPLEX | DUPLEX | TRIPLEX |
D1 | D2 | D3 | |||
8 | 37.2 | 33.18 | 8 | 10 | 10 |
9 | 41.0 | 37.13 | 8 | 10 | 10 |
10 | 45.2 | 41.10 | 8 | 10 | 10 |
11 | 48.7 | 45.07 | 10 | 10 | 12 |
12 | 53.0 | 49.07 | 10 | 10 | 12 |
13 | 57.4 | 53.06 | 10 | 10 | 12 |
14 | 61.8 | 57.07 | 10 | 10 | 12 |
15 | 65.5 | 61.09 | 10 | 10 | 12 |
16 | 69.5 | 65.10 | 10 | 12 | 16 |
17 | 73.6 | 69.11 | 10 | 12 | 16 |
18 | 77.8 | 73.14 | 10 | 12 | 16 |
19 | 81.7 | 77.16 | 10 | 12 | 16 |
20 | 85.8 | 81.19 | 10 | 12 | 16 |
21 | 89.7 | 85.22 | 12 | 16 | 16 |
22 | 93.8 | 89.24 | 12 | 16 | 16 |
23 | 98.2 | 93.27 | 12 | 16 | 16 |
24 | 101.8 | 97.29 | 12 | 16 | 16 |
25 | 105.8 | 101.33 | 12 | 16 | 16 |
26 | 110.0 | 105.36 | 16 | 16 | 16 |
27 | 114.0 | 109.40 | 16 | 16 | 16 |
28 | 118.0 | 113.42 | 16 | 16 | 16 |
29 | 122.0 | 117.46 | 16 | 16 | 16 |
30 | 126.1 | 121.50 | 16 | 16 | 16 |
31 | 130.2 | 125.54 | 16 | 16 | 20 |
32 | 134.3 | 129.56 | 16 | 16 | 20 |
33 | 138.4 | 133.60 | 16 | 16 | 20 |
34 | 142.6 | 137.64 | 16 | 16 | 20 |
35 | 146.7 | 141.68 | 16 | 16 | 20 |
36 | 151.0 | 145.72 | 16 | 20 | 20 |
37 | 154.6 | 149.76 | 16 | 20 | 20 |
38 | 158.6 | 153.80 | 16 | 20 | 20 |
39 | 162.7 | 157.83 | 16 | 20 | 20 |
40 | 166.8 | 161.87 | 16 | 20 | 20 |
41 | 171.4 | 165.91 | 20 | 20 | 25 |
42 | 175.4 | 169.94 | 20 | 20 | 25 |
43 | 179.7 | 173.98 | 20 | 20 | 25 |
44 | 183.8 | 178.02 | 20 | 20 | 25 |
45 | 188.0 | 182.07 | 20 | 20 | 25 |
46 | 192.1 | 186.10 | 20 | 20 | 25 |
47 | 196.2 | 190.14 | 20 | 20 | 25 |
48 | 200.3 | 194.18 | 20 | 20 | 25 |
49 | 204.3 | 198.22 | 20 | 20 | 25 |
50 | 208.3 | 202.26 | 20 | 20 | 25 |
51 | 212.1 | 206.30 | 20 | 25 | 25 |
52 | 216.1 | 210.34 | 20 | 25 | 25 |
53 | 220.2 | 214.37 | 20 | 25 | 25 |
54 | 224.1 | 218.43 | 20 | 25 | 25 |
55 | 228.1 | 222.46 | 20 | 25 | 25 |
56 | 232.2 | 226.50 | 20 | 25 | 25 |
57 | 236.4 | 230.54 | 20 | 25 | 25 |
58 | 240.5 | 234.58 | 20 | 25 | 25 |
59 | 244.5 | 238.62 | 20 | 25 | 25 |
60 | 248.6 | 242.66 | 20 | 25 | 25 |
62 | 256.9 | 250.74 | 25 | 25 | 25 |
64 | 265.1 | 258.82 | 25 | 25 | 25 |
65 | 269.0 | 262.86 | 25 | 25 | 25 |
66 | 273.0 | 266.91 | 25 | 25 | 25 |
68 | 281.0 | 274.99 | 25 | 25 | 25 |
70 | 289.0 | 283.07 | 25 | 25 | 25 |
72 | 297.2 | 291.15 | 25 | 25 | 25 |
75 | 309.2 | 303.28 | 25 | 25 | 25 |
76 | 313.2 | 307.32 | 25 | 25 | 25 |
78 | 321.4 | 315.40 | 25 | 25 | 25 |
80 | 329.4 | 323.49 | 25 | 25 | 25 |
85 | 349.0 | 343.69 | 25 | 25 | 25 |
90 | 369.9 | 363.90 | 25 | 25 | 25 |
95 | 390.1 | 384.11 | 25 | 25 | 25 |
100 | 410.3 | 404.32 | 25 | 25 | 25 |
110 | 450.7 | 444.74 | 25 | 25 | 25 |
114 | 466.9 | 460.91 | 25 | 25 | 25 |
120 | 491.2 | 485.16 | 25 | 25 | 25 |
125 | 511.3 | 505.37 | 25 | 25 | 25 |
